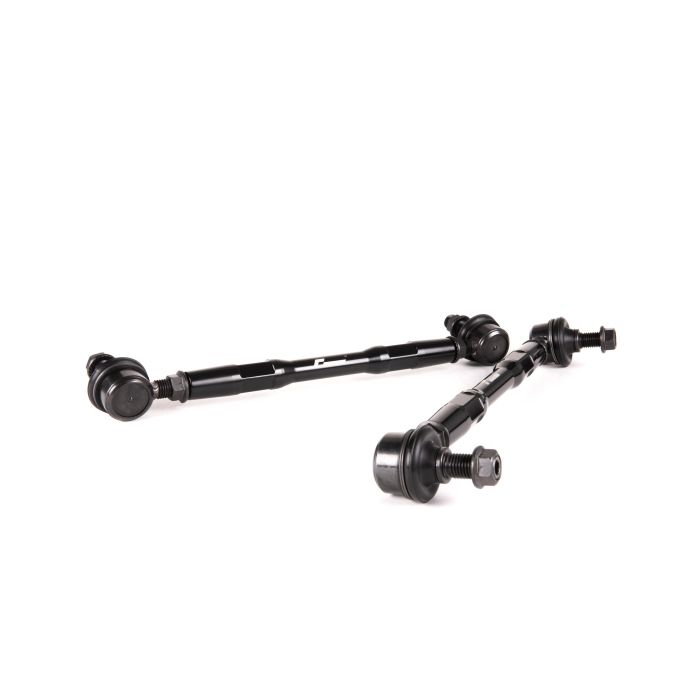

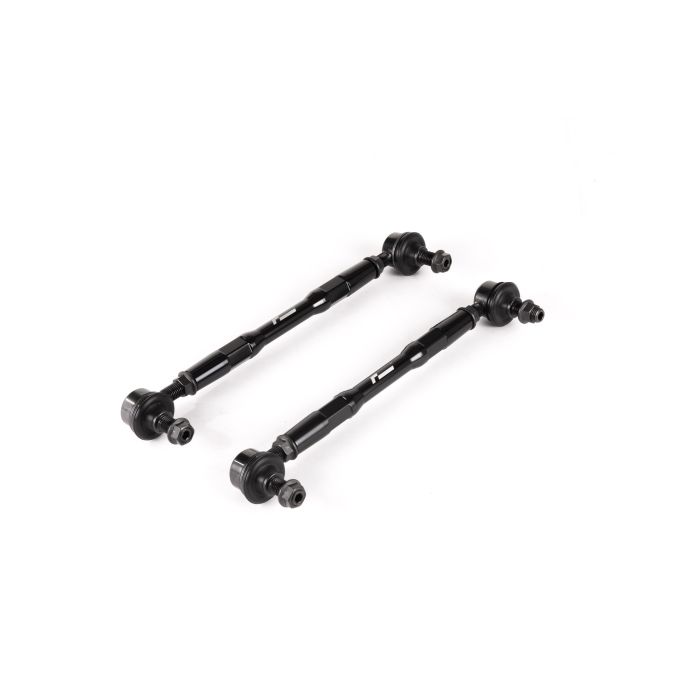

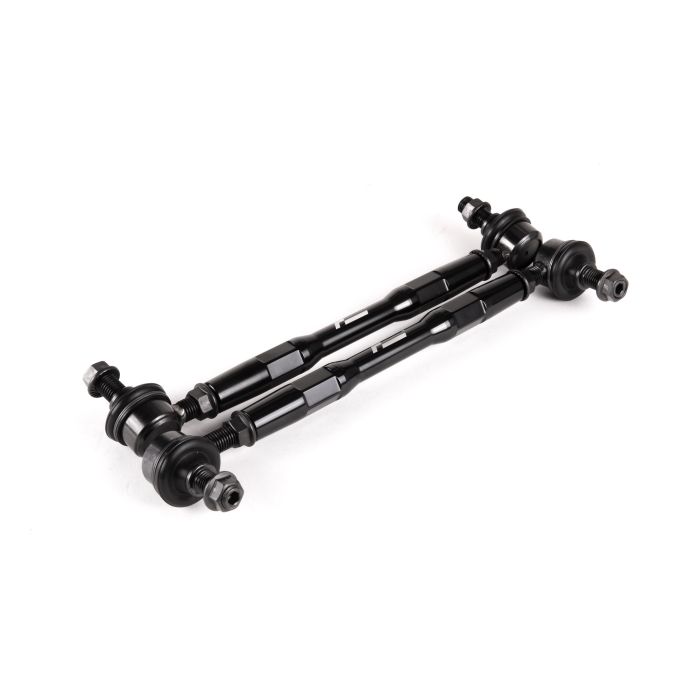

RacingLine Anti-Roll Bar Link Arms - 200mm Centre

Have you lowered your car's ride height with adjustable coilovers (or even air suspension)? RacingLine's 200mm Adjustable Drop Links are an essential upgrade to remove preload from your anti-roll bar geometry, as well as sharpen stiffness and precision by replacing the original rubber bushes with ball joints.

If you've lowered your car's ride height, RacingLine's adjustable drop links are an essential upgrade to remove preload from your anti-roll bar geometry. Plus, by replacing the original rubber bushes with motorsport-spec ball joints, you'll experience a new level of precision.

These links were developed in RacingLine’s motorsport program to ensure their cars' anti-roll bars were working correctly. Designed for race cars, but without compromising functionality for road cars.

The drop link connects the ends of the front anti-roll bar to the front damper. The standard drop links are that length for a reason – to compliment the standard ride height. Adjusting the drop links’ length to the equivalent of your lowered ride height is a must. RacingLine offer two lengths, depending on your vehicle height.

When lowered, the car pulls down on the anti-roll bar ends, pulling it out of its operating window and forcing it into a steeper angle.

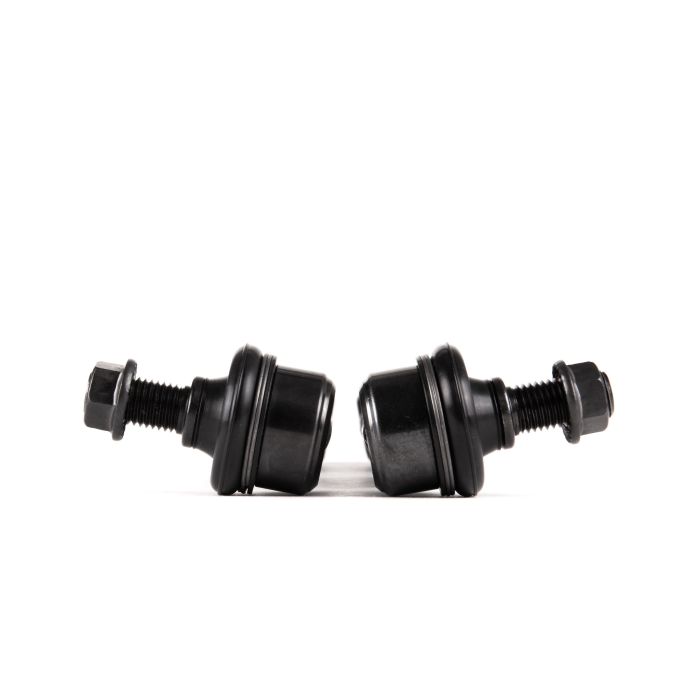

RacingLine drop links use solid motorsport-spec ball joints, manufactured from high-strength steel with a Teflon lining. By replacing the soft rubber bushes of the standard links with motorsport-spec ball joints, cornering response and steering will be noticeably improved.

Each link is CNC-machined from lightweight 6061-T2 Aluminium, featuring a gorgeous gloss black anodized finish and laser-etched logos.

Left/right threaded ends make length adjustment easy, while rubber boots protect the ball joints from the elements for many years to come.

These drop links have an adjustable length of 30mm (1.1”) to dial out the anti-roll bar preload.

RacingLine offer these Adjustable Drop Links in two lengths to suit different ride heights. This kit is the shorter 200mm length, ideal for vehicles with coilover or air suspension at low ride height.

A longer 250mm version is also available for vehicles at standard ride height or with lowering springs.
