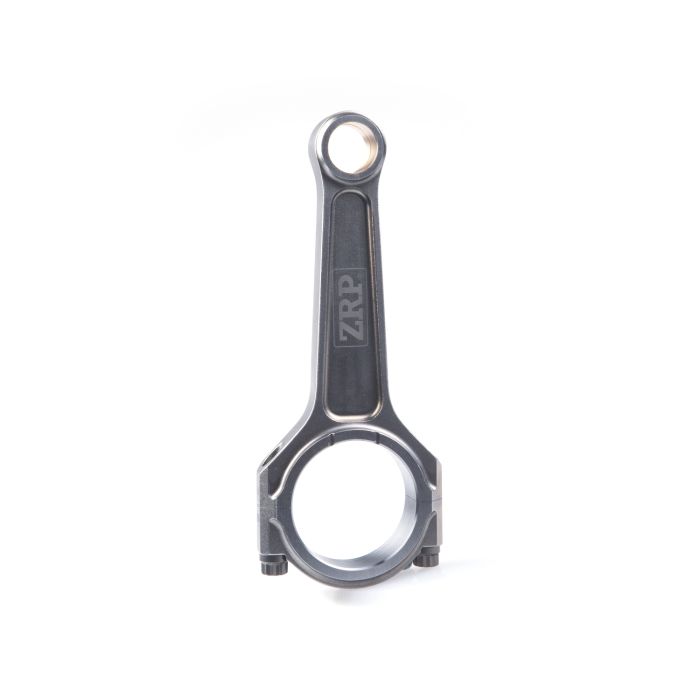

ZRP Connecting Rods for Nissan GTR R35 VR38DETT I-Beam HD Series

ZRP "Heavy Duty" I-Beam Connecting Rods for Nissan GTR VR38 DETT are designed for high power/boost applications. Manufactured from the finest raw materials, 4340 high tensile steel with a specially optimized shape for high performance and extreme durability. Straight cut small end increases durability, so they can only be used with aftermarket pistons. Bushings are made from AMPCO 18 material, which offers excellent wear and fatigue resistance, and feature a radial groove that acts as an oil reservoir. Shot peened for material stress relief and multi-stage heat treated for increased rigidity. Strict tolerances in the production process ensure a perfect fit and optimize oil clearances. Bend and twist are strictly controlled. Each connecting rod includes 3/8 ARP 2000 cap fasteners which are rated to 220,000 psi, optional 260,00 psi ARP L19 material available as an upgrade and the entire kit is supplied with ARP moly and full assembly instructions. Additional Machining Processes "Straight Cut" small end - suitable for aftermarket pistons Pin bush bore for perfect fit and accurate re-assembly Interlocking cap relief for increased big end integrity in extreme applications Thrust face grooves for weight reduction ZRP Connecting Rod Technical Features I-Beam shape for increased rigidity Two-piece forging for great strength Shot peened for improved fatigue life Magnaflux inspection ensures the consistency of the forged material meets our high quality standard Double ribbed caps for extra support Multi-stage heat treatment for maximum strength, dimensional stability and fatigue life. CNC machined for superior tolerances, accuracy up to 0.0002". Center to center distance maintained within 0.001" tolerance. Finite Element Analysis (FEA). Computer generated stress analysis of the connecting rod. Optimal balancing for weight-matched sets of ± 1 gram.
