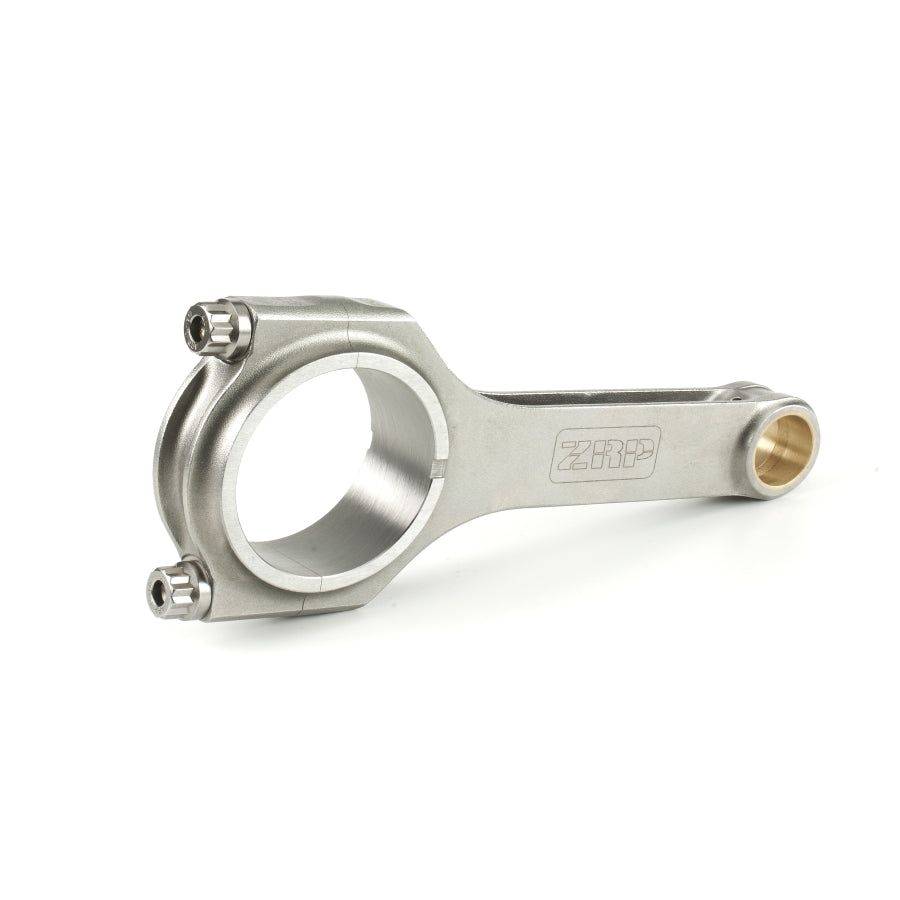

ZRP connecting rods for Lancia Delta Integrale / Fiat Coupé 2.0L 16v, 149.0 mm length.

ZRP H-Beam Connecting Rods for Lancia 2.0L 16v Delta Integrale are made from high-strength 4340 steel and designed for high performance and extreme durability. The center-to-center length has been increased by 4.00mm making them ideal for long rod applications. The pin end is also reinforced to minimize distortion under high inertial loads, thereby reducing weight. Bushings are made of aluminum-silicon/bronze and feature a radial groove that acts as an oil reservoir. They are shot-peened to relieve material stress and undergo multi-stage heat treatment to increase their rigidity. Strict manufacturing process tolerances ensure a perfect fit and optimize oil clearances. Bending and torsion are strictly controlled. Each connecting rod includes ARP 2000 cap fasteners rated at 220,000 psi, optional ARP L19 material at 260,00 psi available as an upgrade, and the entire kit is supplied with ARP molybdenum and comprehensive assembly instructions. Additional Machining Processes Pin sleeves for perfect fit and precise reassembly Flanged cap relief for improved big end integrity in extreme applications Thrust face grooves for weight reduction ZRP Connecting Rod Technical Features Aluminum-silicon/bronze bushing with radial groove. Two-piece forging for high strength Shot peening for improved fatigue life Magnaflux inspection ensures forged material consistency meets our high-quality standard Double ribbed caps for added support Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue life. CNC machined for superior tolerances, with an accuracy of up to 0.0002". Center-to-center distance maintained below 0.001" tolerance. Finite Element Analysis (FEA). Computer-generated stress analysis of connecting rods. Optimal balancing for weight-matched sets of ± 1 gram.
