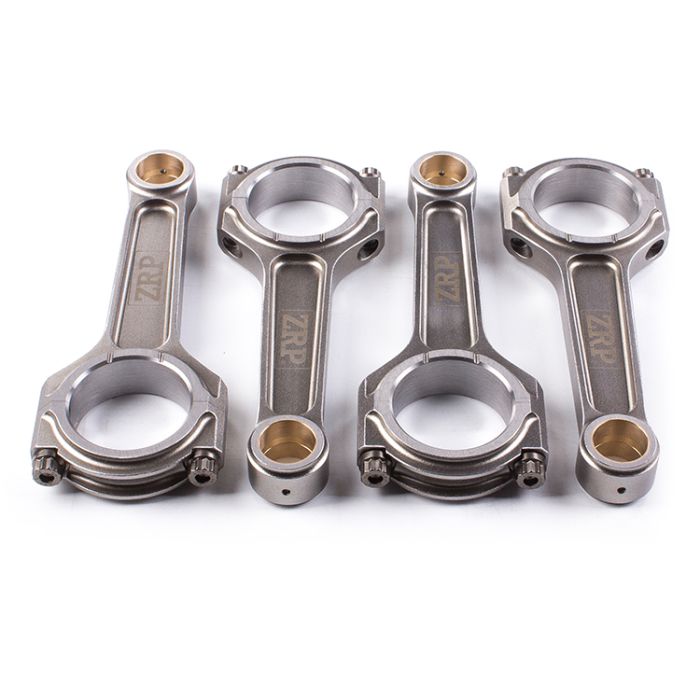

ZRP Connecting Rods for Honda F20C HD Series, Lightweight I-Beam Design.

ZRP "Heavy Duty" I-Beam connecting rods for the Honda S2000 F20C are designed for high-power/supercharged applications. Made from the finest raw materials, high-strength 4340 steel with a shape specially optimized for high performance and extreme durability. The "straight cut" pin end increases durability, meaning they can only be used with aftermarket pistons. The bushings are made of AMPCO 18 material for excellent wear and fatigue resistance, and have a radial groove that acts as an oil reservoir. They are shot-peened to relieve material stress and heat-treated in several stages to increase stiffness. Strict tolerances in the production process ensure a perfect fit while optimizing oil clearances. Bending and torsion are strictly controlled. Each connecting rod includes 3/8 ARP 2000 cap screws rated at 220,000 psi, optional ARP L19 material rated at 260,000 psi available as an upgrade, and the complete kit is supplied with ARP moly and full assembly instructions.

Additional machining processes

Tapered pin end – also suitable for OEM pistons

Centering sleeves for perfect fit and precise reassembly

Flanged cap relief for increased connecting rod head integrity in extreme applications

Grooves on the thrust face for reduced weight

Lightweight design

ZRP connecting rod technical features

I-beam shape for increased stiffness

Forged in two pieces for high strength

Shot-peened for increased fatigue resistance

Magnaflux inspection ensures the consistency of the forged material meets our high quality standards

Double ribbed caps for increased support

Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue resistance

CNC machined for superior tolerances, accurate to 0.0002"

Center-to-center distance maintained below 0.001" tolerance

Finite Element Analysis (FEA): computer-generated stress analysis of connecting rods

Optimal balancing for weight-matched sets of ± 1 gram
