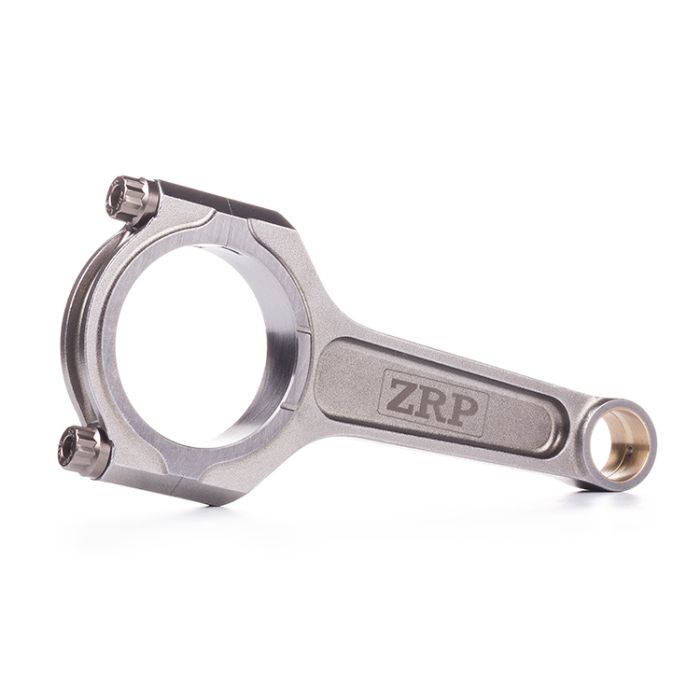

ZRP Connecting Rods for BMW M3 V8 S65B40 HD Series

I-beam connecting rods for the BMW V8 M3 S65 4.0L engine are manufactured from the highest quality 4340 high-tensile steel, with a shape specially optimized for high performance and extreme durability. They feature a straight cut pin end for increased durability, so they should only be used with aftermarket pistons. Bushings are made from AMPCO 18 material, which offers excellent wear and fatigue resistance, and have a radial groove that acts as an oil reservoir. They undergo shot peening to relieve material stress and multi-stage heat treatment to increase their rigidity. Strict tolerances in the production process ensure a perfect fit and optimize oil clearances. Bending and torsion are strictly controlled. Each connecting rod includes ARP 2000 cap fasteners rated at 220,000 psi, optional ARP L19 material at 260,00 psi available as an upgrade, and the entire kit is supplied with ARP molybdenum and comprehensive assembly instructions. Additional machining processes "Straight cut" pin end: suitable for aftermarket pistons Pin sleeves for perfect fit and precise reassembly Flange cap relief for increased big end integrity in extreme applications Thrust face grooves for weight reduction ZRP connecting rod technical features I-beam shape for increased rigidity Two-piece forging for high strength Shot peening for extended fatigue life Magnaflux inspection ensures that the consistency of the forged material meets our high-quality standard Double ribbed caps for added support Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue life. CNC machining for superior tolerances, accurate to within 0.0002". Center-to-center distance is held to within 0.001" tolerance. Finite Element Analysis (FEA). Computer-generated stress analysis of the connecting rods. Optimal balancing for weight-matched sets of ± 1 gram.
