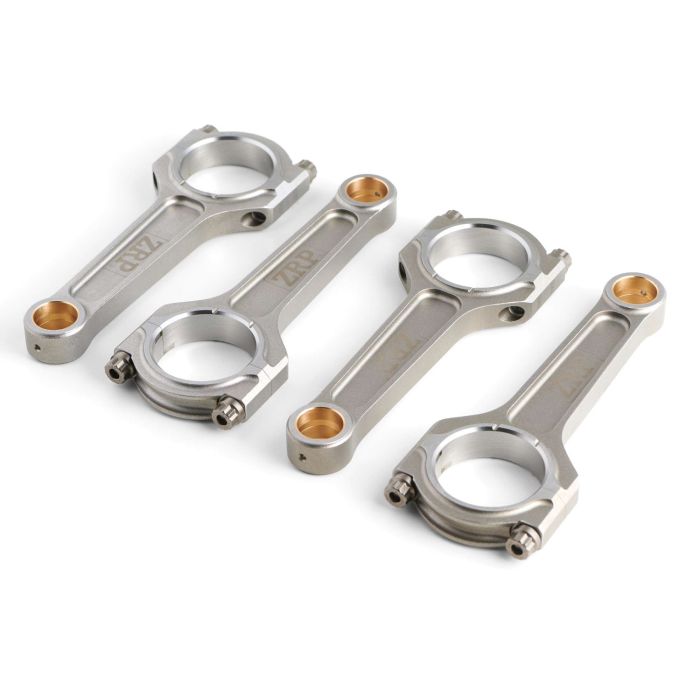

ZRP Reinforced Connecting Rods for Hyundai I30N 146.28 mm x 22 mm

The "Heavy Duty" I-Beam connecting rods for the Hyundai i30N 2.0L engine are designed for high-power applications. Manufactured from the highest quality raw materials, 4340-EN24T high tensile steel, they feature a specially optimized shape for high performance and extreme durability. The straight-cut pin end increases durability, so they should only be used with aftermarket pistons. The bushings are made from AMPCO 18 material, which offers excellent wear and fatigue resistance, and feature a radial groove that acts as an oil reservoir. They are shot-peened to relieve material stress and undergo multi-stage heat treatment to increase rigidity. Strict tolerances in the production process ensure a perfect fit and optimize oil clearances. Bending and twisting are strictly controlled. Each connecting rod includes 3/8" ARP 2000 cap screws with a strength of 220,000 psi. Optionally, 260,000 psi ARP L19 material can be purchased as an upgrade. The complete kit includes ARP molybdenum lubricant and comprehensive assembly instructions.

Additional Machining Processes:

Dowel sleeves for perfect fit and precise reassembly.

Cap relief for increased big end integrity in extreme applications.

Thrust face grooves for weight reduction.

ZRP Connecting Rod Technical Features:

Two-piece forging for great strength.

I-Beam shape for increased rigidity.

Shot-peened for increased fatigue resistance.

Magnaflux inspection ensures forged material consistency meets our high quality standards.

Double ribbed caps for extra support.

Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue resistance. CNC machined to superior tolerances, accurate to within 0.0002″

Center-to-center tolerance less than 0.001″

Finite Element Analysis (FEA): computer-generated stress analysis for connecting rods

Optimal balancing for matched weight sets of ± 1 gram

Additional Information

Engine No.

G4KH

Application

2.0L i30N

Notes

Non-tapered pin end / straight PE

Bolt Size

3/8"

Shape

I-Beam

Length (CC)

146.28 mm

Pin Size

22.00

Big End Bore

51.00

Pin End Width

21.86

Weight (gr.)

512

Set of

4

Fastener Grade

ARP2000

Series

Heavy Duty

Weight

512
