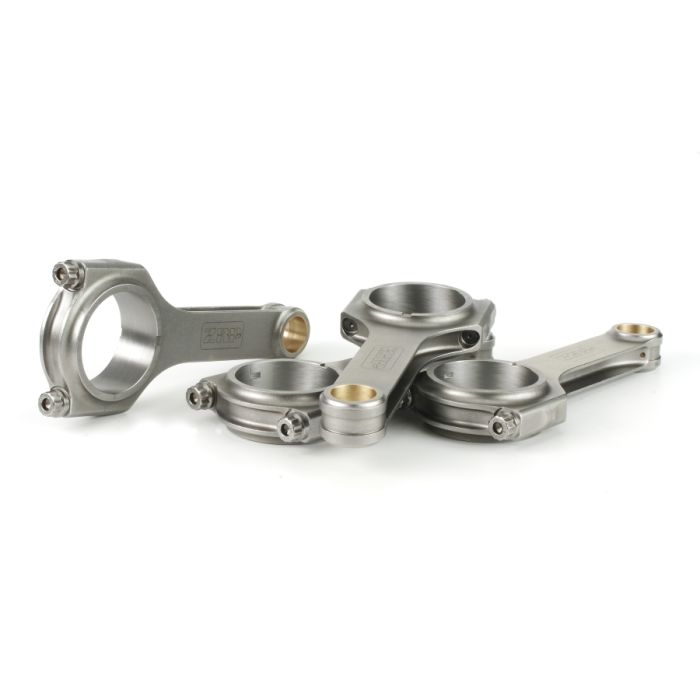

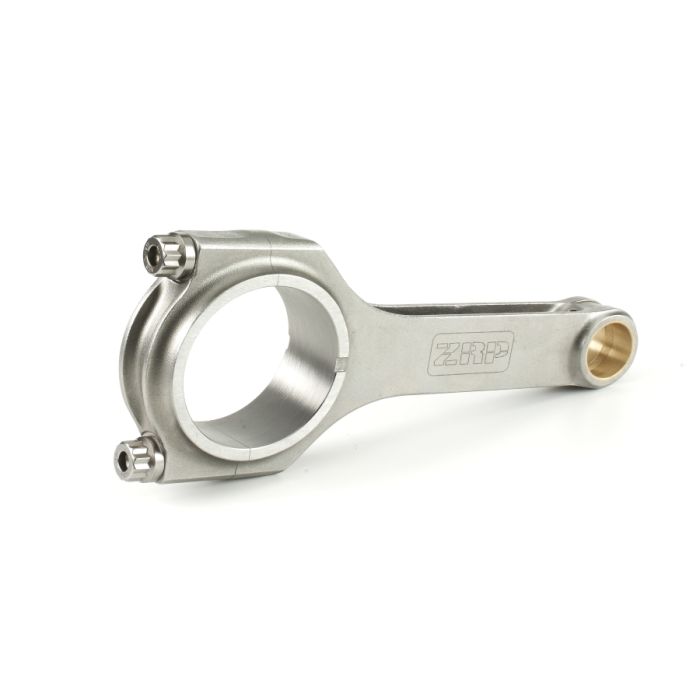

ZRP L19 Connecting Rods for Lancia Delta Integrale 2.0L 16v / Fiat Coupé (149mm length)

H-beam connecting rods for Lancia 2.0L 16v Delta Integrale are made from high-strength 4340 steel and designed for high performance and extreme durability. The center-to-center length has been increased by 4.00mm, making them ideal for long rod applications. The pin end is also reinforced to minimize deformation under high inertial loads, thereby reducing weight. The bushings are made of aluminum-silicon/bronze and feature a radial groove that acts as an oil reservoir. They are shot-peened to relieve material stress and undergo multi-stage heat treatment to increase their rigidity. Strict manufacturing process tolerances ensure a perfect fit and optimize oil clearances. Flexing and twisting are strictly controlled. Each connecting rod includes ARP 2000 cap fasteners with a strength of 220,000 psi. Optionally, 260,000 psi ARP L19 material can be purchased as an upgrade. The complete kit comes with ARP molybdenum lubricant and comprehensive assembly instructions.

Additional machining processes:

Dowel pin sleeves for perfect alignment and precise reassembly.

Cap relief with flange for improved big end integrity in extreme applications.

Grooves on the thrust face to reduce weight.

ZRP connecting rod technical features:

Aluminum-silicon/bronze bushing with radial groove.

Two-piece forging for high strength.

Shot-peened for increased fatigue resistance.

Magnaflux inspection ensures that the consistency of the forged material meets our high quality standards.

Double rib caps for added support.

Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue resistance. CNC machined to superior tolerances, accurate to 0.0002″

Center-to-center distance maintained within 0.001″ tolerance

Finite Element Analysis (FEA): Computer-generated stress analysis for connecting rods

Optimal balancing for weight-matched sets of ± 1 gram
