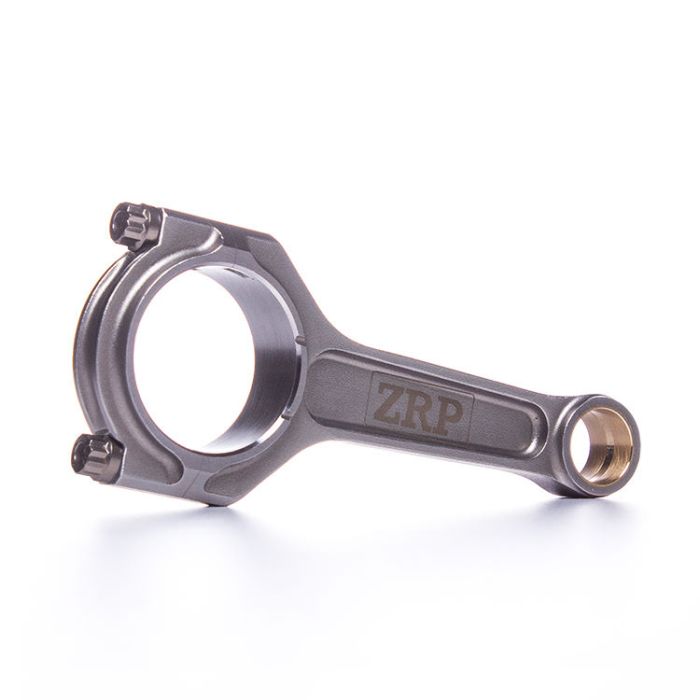

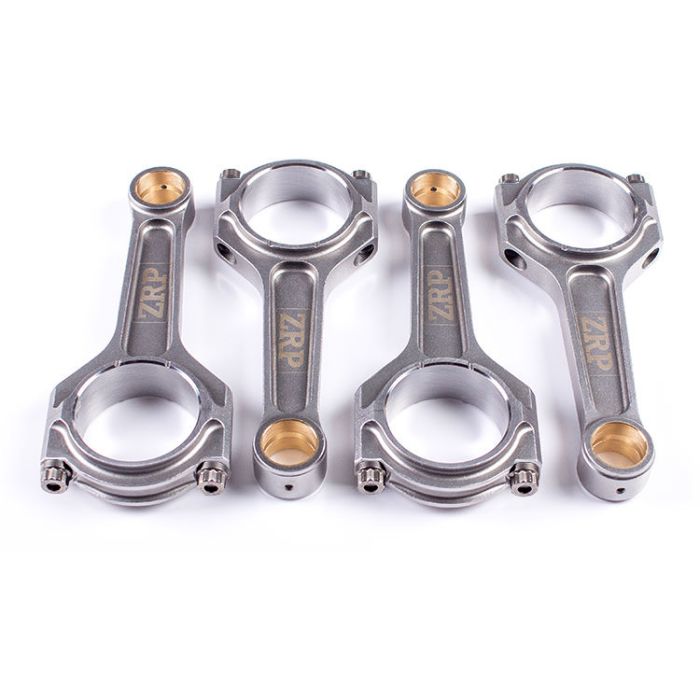

Connecting Rods with L19 ZRP Bolts for Volvo 1.9L 16v B4204T / B4194 ( S40 / V40 )

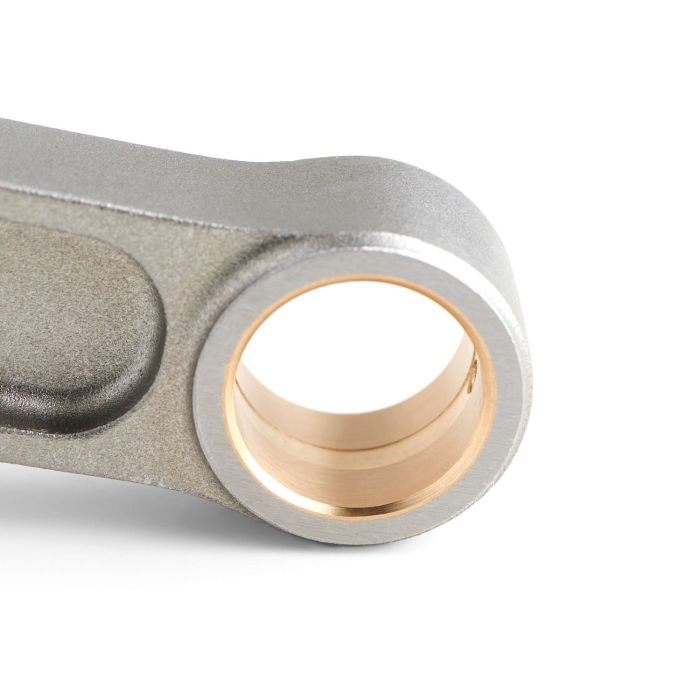

I-beam connecting rods for Volvo 1.9L 16v B4204T & B4194 (S40, V40) are manufactured from the highest quality 4340 high tensile steel, with a specially optimized shape for high performance and extreme durability. The bushings are made of AMPCO 18 material, which offers excellent wear and fatigue resistance, and feature a radial groove that acts as an oil reservoir. They are shot-peened to relieve internal stresses and undergo multi-stage heat treatment to increase their rigidity. Strict production process tolerances ensure a perfect fit and optimize oil clearances. Bending and twisting are strictly controlled. Each connecting rod includes ARP 2000 head bolts with a strength of 220,000 psi; optionally, ARP L19 material with a strength of 260,000 psi can be purchased. The complete kit comes with ARP moly lubricant and comprehensive assembly instructions. Additional machining processes

Centering bushings for a perfect fit and precise reassembly

Relieved cap with flange for increased connecting rod head integrity in extreme applications

Grooves on the thrust face to reduce weight

ZRP Connecting Rod Technical Features

I-beam shape for increased rigidity

Two-piece forged for high strength

Shot-peened for increased fatigue resistance

Magnaflux inspection ensures that the consistency of the forging material meets our high quality standards

Double ribbed caps for increased support

Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue resistance

CNC machined for superior tolerances, with accuracy up to 0.0002″

Center-to-center distance is maintained below 0.001″ tolerance

Finite Element Analysis (FEA): computer-generated stress analysis of connecting rods

Optimal balancing for weight-matched sets of ± 1 gram
