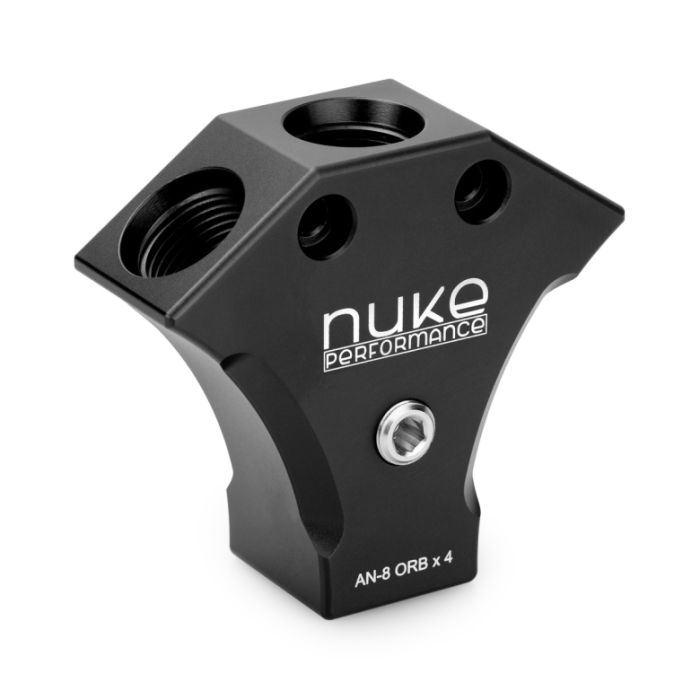

Nuke Performance X-Block AN-8 ORB Adapter (4x)

Compact and versatile X-Block adapter with oversized flow and sensor port integration. 4x AN-8 ORB ports and 1x 1/8 NPT sensor port.

An updated version of one of Nuke Performance's very first products, this X-Block adapter features four oversized AN-8 ORB threaded ports, offering maximum flow and flexibility for demanding motorsport applications.

4x AN-8 ORB ports for maximum flow

1x 1/8 NPT port for gauge or sensor

Allows splitting or combining two lines into one

Dual ports angled at 35° for compact installations

Compatible with all types of fuels, as well as oil and coolant

Designed to easily manage high-performance fuel, oil, or coolant routing, this compact and lightweight distribution block is a must-have for any custom setup.
Whether you're building a dual-feed fuel system, adding a pressure sensor to your oil line, or creating a clean and efficient fluid split, this X-block delivers the flexibility and flow capacity you need, all with the quality and design you expect from Nuke Performance.

Versatile AN-8 ORB ports – compatible with a wide range of adapters and fittings. We offer a wide range of interchangeable fittings and adapters, including AN sizes from AN-4 to AN-12, SAE quick connect for seamless integration with OEM fuel systems, barb fittings for rubber hoses, and much more. The AN-8 ORB standard (available here) provides exceptional versatility, making it ideal for both high-performance fuel systems and motorsport-grade oil applications.

AN-8 ORB to AN-6 Male Adapter, Part No: 700-04-104

AN-8 ORB to AN-8 Male Adapter, Part No: 700-04-105

AN-8 ORB to AN-10 Male Adapter, Part No: 700-04-106
AN-8 ORB to SAE 7.89 Male Adapter, Part No: 150-20-422
AN-8 ORB to SAE 9.49 Male Adapter, Part No: 150-20-425
AN-8 ORB to 8mm Male Adapter, Part No: 700-04-123

1/8" NPT port for pressure or temperature monitoring.

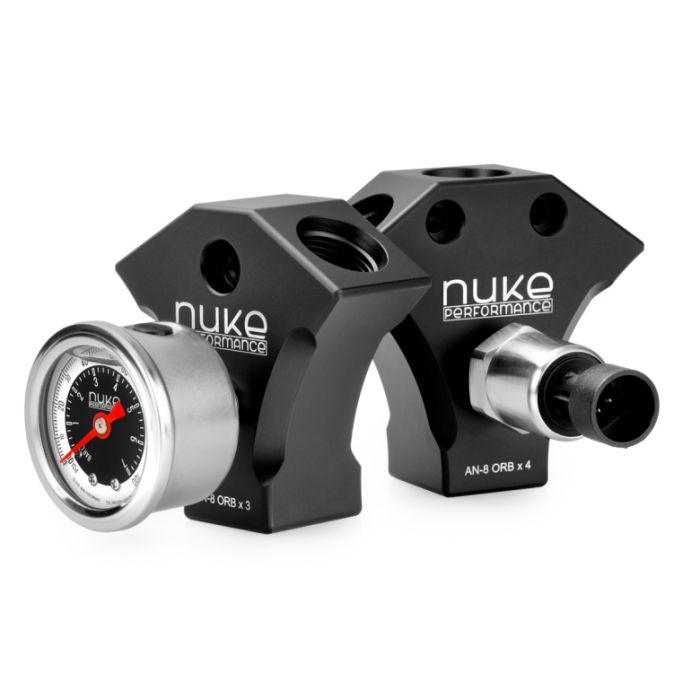

The new X-Block AN-8 ORB (4-pack) adapter incorporates an integrated 1/8" NPT port, ideal for installing pressure or temperature sensors or for adding a pressure gauge for system monitoring.

Fuel Pressure Gauge 7 BAR / 100 PSI. Part No: 310-01-101

Fuel / Oil Pressure Sensor 10 BAR (150 PSI), with connector. Part No: 70-1018

Fuel / Oil Pressure Sensor 10 BAR (150 PSI), with 1m (3ft) cable. Part No: 70-1018C

X-Block Adapter, AN-8 ORB (4-pack). Specifications

For more specification information, please contact us.

Main ports

4x AN-8 ORB (fittings not included)

Secondary port

1x 1/8 NPT (plug included)

For motorsport use
YES

Fuel compatibility
Gasoline, methanol, ethanol, E85, E100

Oil/Coolant compatibility
YES

Port angle
35° from center

Width

79.2 mm (3.12")

Height

71.5 mm (2.81")

Depth

29.0 mm (1.14")

Weight

151 g (5.32 oz)

Replaces old part no.

400-01-202

Part no.

410-01-202

EAN
7340209509663
