Nuke Performance Flexible Fuel Sensor Adapter

Nuke Performance Full-Flow Flex Fuel Sensor Adapter. Its bypass design allows for an ethanol content sensor to be used without flow loss.

With the Nuke Performance Full-Flow Flex Fuel Sensor Adapter, you can install your ethanol content sensor on both the pressure and return fuel line of your system. Sensor is not included.

Compatible with most GM Flex Fuel Sensors.

Bypass design exceeds AN-10 fuel line capacity.

AN-10 ORB inlet/outlet for maximum fuel flow.

Works on both pressure and return line.

Lightweight design with integrated bracket.

4 x Viton O-rings for maximum durability.

When using alcohol fuels, such as E85, an ethanol content sensor is used to measure the fuel at all times to maintain ECU accuracy and performance. The most common sensors have a very small flow capacity, not allowing for a high-performing fuel system. With this sensor adapter, you can install the sensor on both the pressure and return side with virtually no flow loss, thanks to its bypass design which exceeds the capacity of a Dash 10 fuel line.

Compatible with the most common OEM ethanol content sensors for your aftermarket fuel system.

Designed to work with the most common flex fuel sensors on the market from the OEM manufacturer GM (Continental), this adapter is compatible with sensors 13577379, 13577429, SE1003, 13577394, and other sensors of the same design. Many standalone ECU manufacturers such as Haltec, Cobb Tuning, Fuel Tech USA, ECU Master, AEM, Link, and MaxxECU sell sensors under their own brand. However, these components often have the same specifications as the OEM parts and work with the Nuke Performance Sensor Adapter as long as they use 9.49" (5/16") connections.

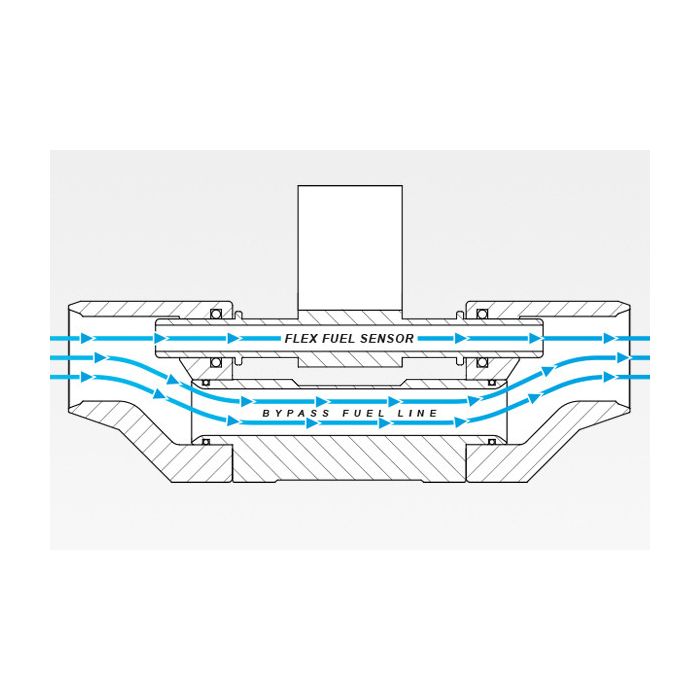

Engineered with a bypass system exceeding the capacity of an AN10 fuel line, the oversized components offer safety margins where needed.

The oversized internal bypass fuel line integrated into the Nuke Performance Full-Flow Flex Fuel Sensor Adapter exceeds the capacity of an AN-10 fuel line. The oversized internal design provides safety margins where needed and allows for mounting the sensor on both the pressure and return side of the fuel system.

Which flex fuel sensor can be used with the Nuke Performance Bypass Ethanol Content Sensor Adapter?

The Nuke Performance Split Flow Sensor Adapter has been developed to be used with all commonly used flex fuel content sensors such as Continental (GM) 13577429, 2022400116, 13577379, SE1003, and even the 13577394, which requires a width modification of 95 mm (3.75").

GM Flex Fuel Sensor 13577429

GM Flex Fuel Sensor 13577379

GM Flex Fuel Sensor 13577394

The Full-Flow Flex Fuel Sensor Adapter is delivered without the necessary flex fuel sensor.

GM Flex Fuel Sensor 13577429 Part No: 70-13577429

GM Flex Fuel Sensor 13577379 Part No: 70-13577379

Delivered with a lightweight bracket for easy installation of the GM Flex Fuel Sensor 13577429.

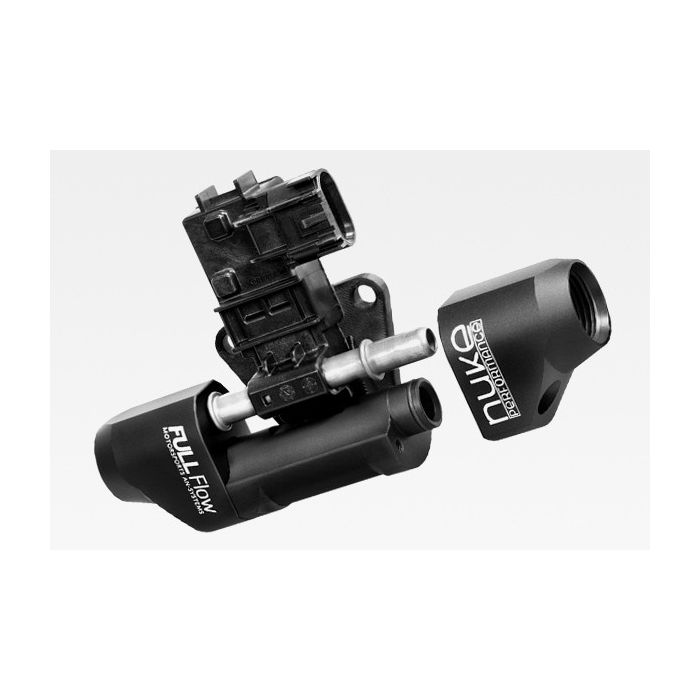

One of the most common ethanol content sensors, the GM 13577429, does not include factory mounting points. With the Nuke Performance Full-Flow Flex Fuel Sensor Adapter, you will enjoy all the benefits of a split-flow design, while the integrated brackets ensure a secure and durable installation, especially useful in demanding motorsport conditions. For GM 13577379 and 13577394 sensors, which have their own mounting holes, the included bracket is not required.

Developed and designed by Nuke Performance in Sweden for enthusiasts and professional motorsport athletes.

The Nuke Performance Full-Flow Flex Fuel Sensor Adapter, AN-10, has been developed and designed in-house by Nuke Performance in Sweden to provide the highest quality, with the same hallmark that characterizes all other parts in our range of lightweight motorsport components. Nuke Performance quality is second to none!

Specifications of the Full-Flow Flex Fuel Sensor Adapter, AN-10:

For more information on specifications, please contact us directly.

Compatible with sensors SE1003, 13577379, 13577429, 13577394*

Inlet thread AN-10 ORB, see assortment here

Outlet thread AN-10 ORB, see assortment here

Bypass design: YES, the overall internal diameter exceeds that of the AN-10 fuel line

Fuel compatibility: Gasoline, Methanol, Ethanol

Integrated bracket: YES, removable when not needed

Height: 44.2 mm (1.74") / 56.2 mm (2.21")**

Width: 137 mm (5.39")

Depth: 32 mm (1.26") / 42.5 mm (1.67")**

Bracket center distance: 48 mm (1.89")

Weight: 240 g (8.46 oz)

Sensor connection: SAE 9.49 (5/16")

Max sensor width: 95 mm (3.75")

* Sensor 13577394 requires modification before application
** First measurement is without bracket, second measurement is with bracket

The Nuke Performance Full-Flow Flex Fuel Sensor Adapter includes:
1 x Full-Flow Flex Fuel Sensor Adapter
1 x Lightweight bracket, removable when not needed
1 x Safety booklet.

The Full-Flow Flex Fuel Sensor Adapter does not include the appropriate flex fuel sensor.
GM Flex Fuel Sensor 13577429 Item number: 70-13577429
GM Flex Fuel Sensor 13577379 Item number: 70-13577379
Comes with a lightweight bracket for an easy mounting solution for the GM 13577429 flexible fuel sensor.
One of the most common ethanol content sensors, the GM 13577429, lacks standard mounting points. With the Nuke Performance Full-Flow Flex Fuel Sensor Adapter, it is used together with all split-flow designs, which integrate a secure and practical installation, and are often not used in motorsport. For GM numbers 13577379 and 13577394, which have their own mounting holes, you do not need to use the included mounting bracket.
Developed and designed for enthusiasts and professional motorsport competitors by Nuke Performance in Sweden.
The Nuke Performance AN-10 Full-Flow Flex Fuel Sensor Adapter was built by Nuke Performance in Sweden in an in-house developed and built home, with high quality to achieve the best market times with all other items in a unique motorsport assortment. Nuke Performance quality is a substitute!
Full-Flow Flex Fuel Sensor Adapter, AN-10 Specifications:
For more information on specifications, please contact us directly.
Passport for sensors SE1003, 13577379, 13577429, 13577394*
Inlet thread AN-10 ORB, see assortment here
Outlet thread AN-10 ORB, see assortment here
Bypass design YES, the entire internals exceed the AN-10 fuel line
Fuel compatibility Gasoline, Methanol, Ethanol
Integrated bracket YES, removable when not needed
Height 44.2 mm (1.74 inches) / 56.2 mm (2.21 inches) **
Width 137 mm (5.39")
Depth 32 mm (1.26 inches) / 42.5 mm (1.67 inches) **
Bracket CC 48mm (1.89")
Weight 240 g (8.46 ounces)
Sensor connection SAE 9.49 (5/16")
Max. Sensor width 95 mm (3.75 inches)
* Sensor 13577394 must be modified according to the configuration.
** First measurement without bracket, second measurement with bracket

Nuke Performance Full-Flow Flexible Fuel Sensor Adapter included:
1 x Full-Flow Flex Fuel Sensor Adapter
1 x Lightweight bracket, removable when not needed
1 x Safety booklet.
