Radium Engineering Flex-Fuel Split Flow Sensor Adapter

Flex fuel sensors measure ethanol content. They can be used in the fuel pressure regulator (FPR) return line. However, for increased accuracy and faster response times, the sensor should be installed upstream of the fuel injectors in the feed line. In this case, a pressure drop of up to ~10psi is expected if multiple pumps are used with a high-horsepower engine.

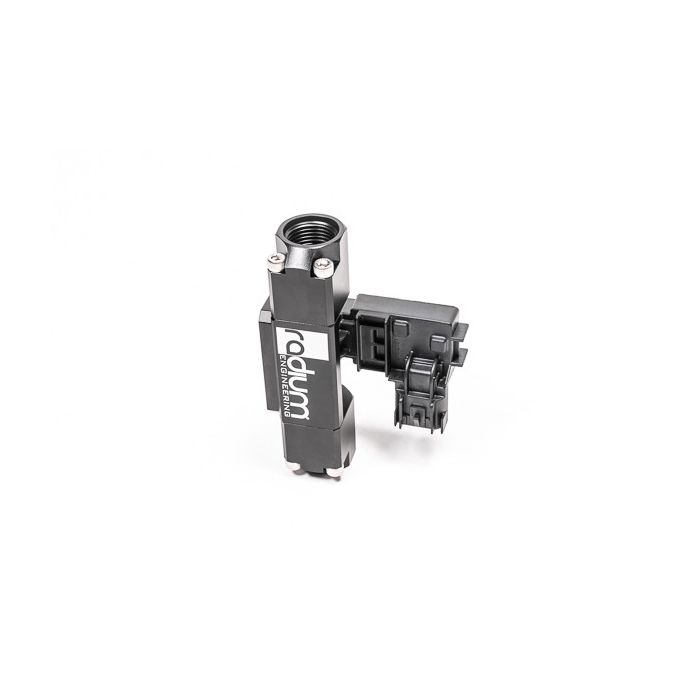

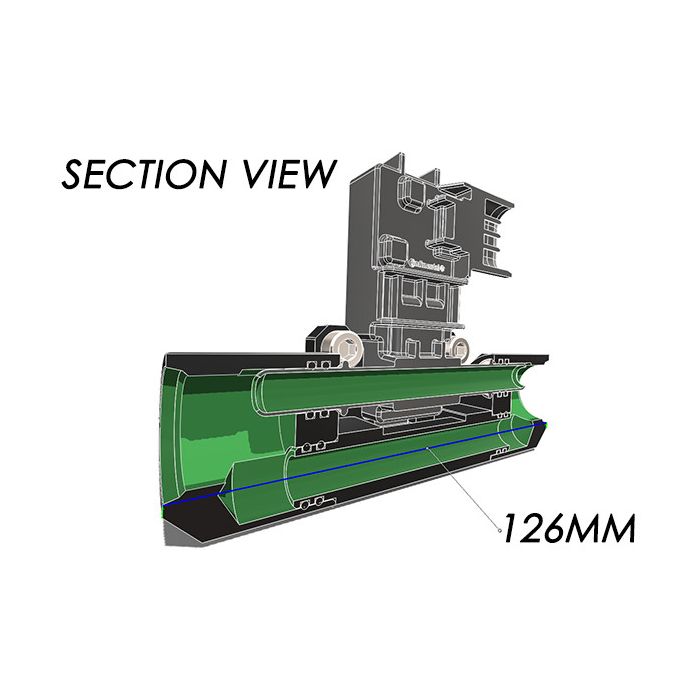

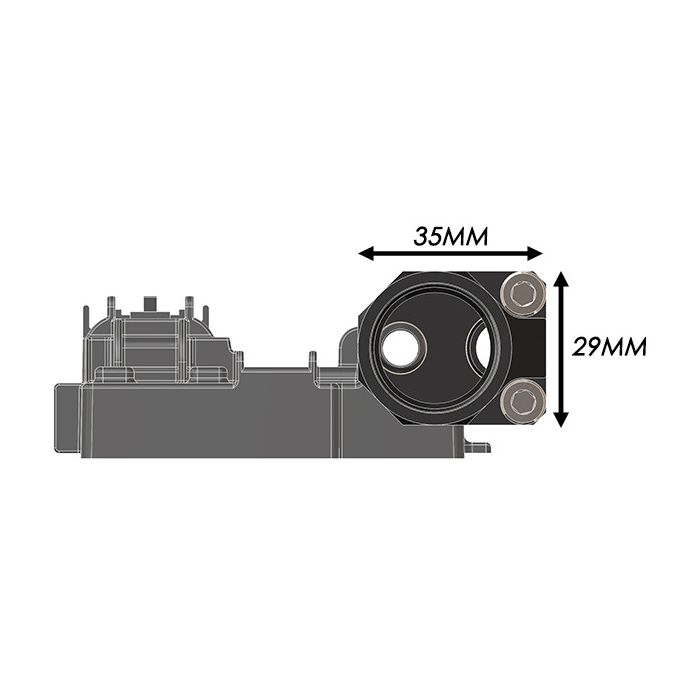

As shown above, the Radium Engineering adapter splits the fuel flow into a bypass conduit parallel to the sensor. Since the flex fuel sensor is directly in-line with the fuel flow, it will read the incoming ethanol content at both high and low engine demands. Traditionally, this bypass was accomplished with Y-fittings and hoses. However, Radium’s split flow flex fuel sensor adapter is simpler, significantly compact, and provides a mounting solution for the popular GM 13577429 flex fuel sensor (shown below).

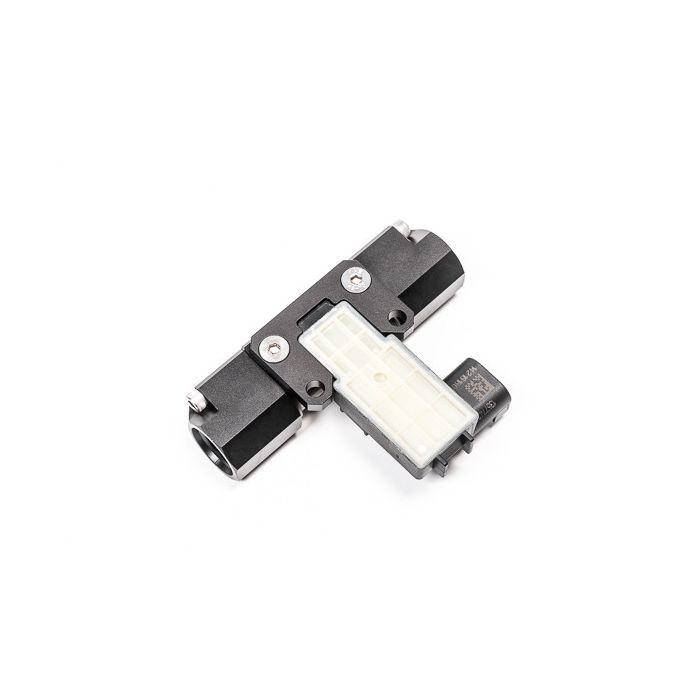

Two M6x1.0mm socket head cap screws are included for mounting.

Furthermore, the sensor position can be clocked at any time, even once mounted and plumbed. This is ideal for proper spacing with surrounding components.

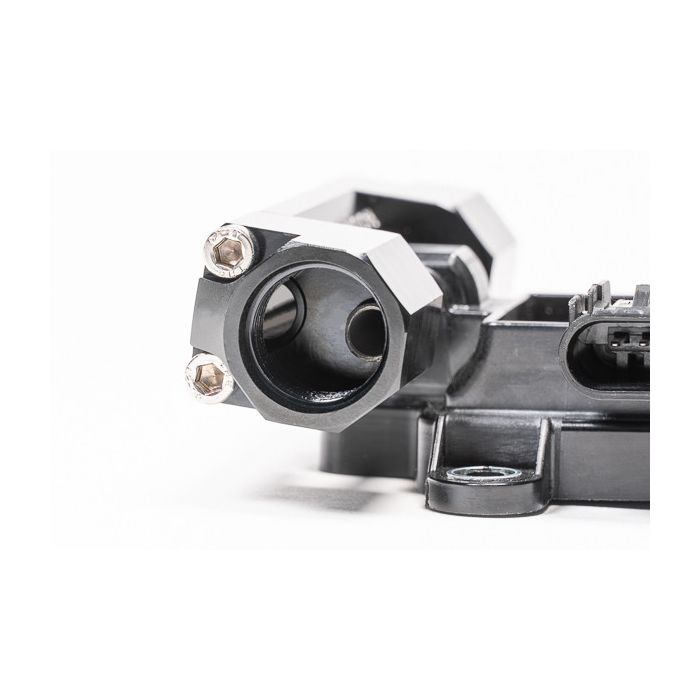

Unique 10AN ORB end port adapters can be purchased.

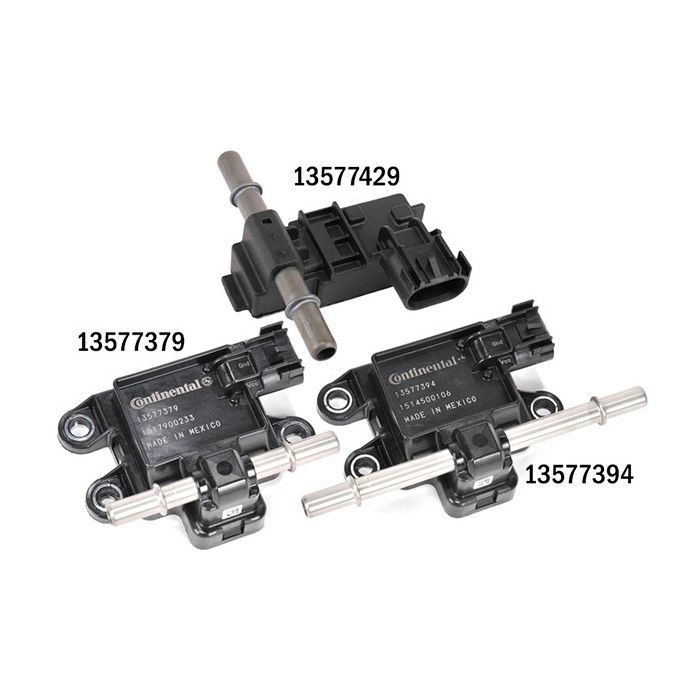

1. GM P/N: 13577429

NOTE: This sensor is the same as found in the AEM 30-2200 / 30-2201, ECU Master WHP, MaxxECU 1282, Fuel Tech 5005100353 / 5011100354 and Cobb Tuning kits.

Compatible with the included bracket (shown below).

2. GM P/N: 13577379
This sensor already has 3 usable mounting holes. The provided bracket cannot be used.

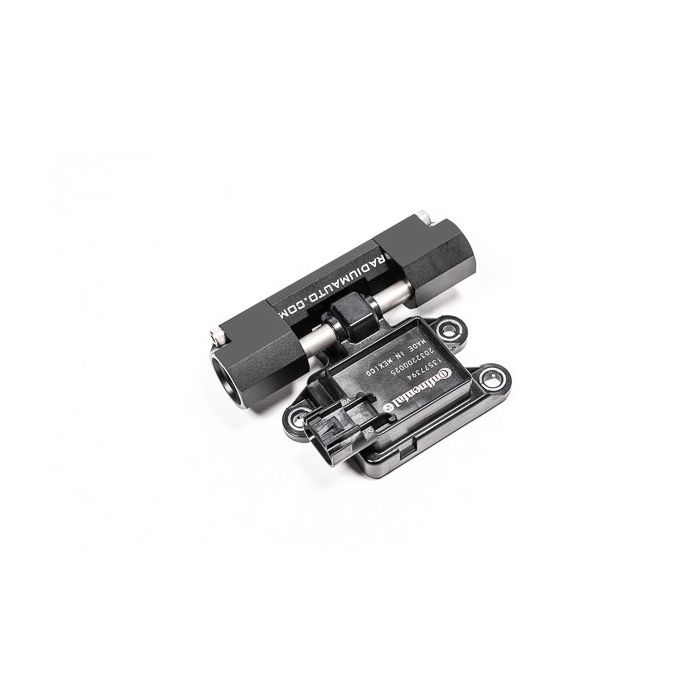

3. GM P/N: 13577394

NOTE: This sensor is the same as found in the Haltech HT-011000 kit.
This sensor already has 3 usable mounting holes. The provided bracket cannot be used. For mounting, this sensor (shown above) requires a small modification outlined in the instructions.

FEATURES

- 4-Piece 6061 Aluminum Construction

- Black Anodized and Laser Engraved Finish

- 10AN (5/8") Equivalent Flow Rate

- Can be Used on Fuel Feed or Return Line

- 8 FKM Double O-Rings (Primary & Backup)

- Stainless Steel Metric Hardware

PDF Instructions. Ecumaster brand products are not shipped to the USA, Canada, and Mexico.
