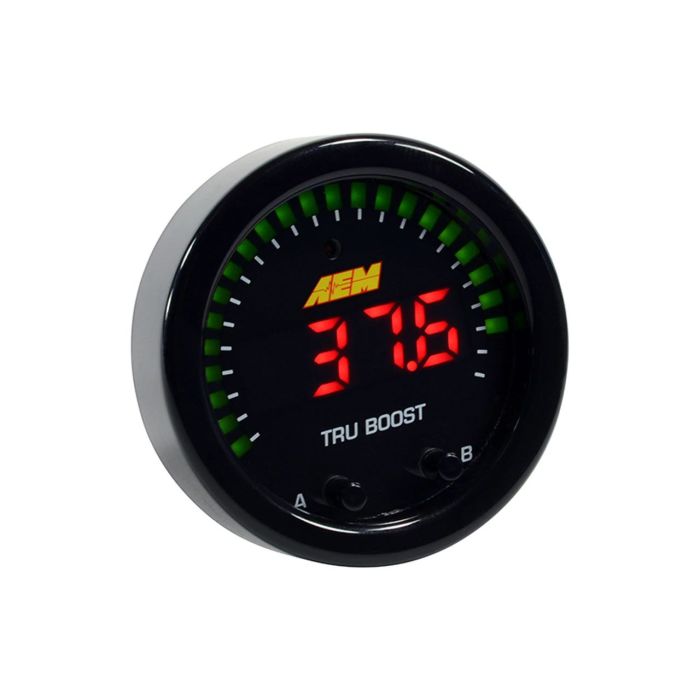

30-0352 - AEM X-Series Tru-BoostX Controller Gauge

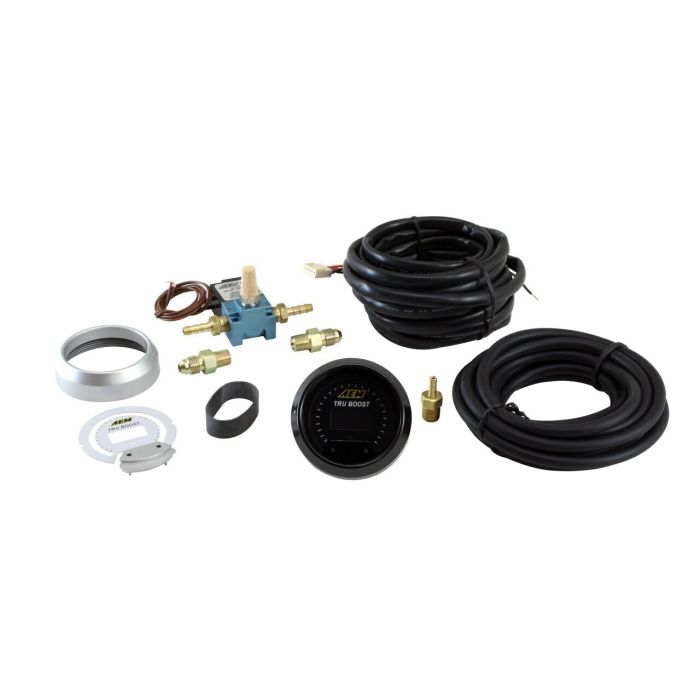

AEM X-Series Tru-Boost Boost Pressure Controller Gauge with Pressure Control Solenoid, 80 PSIg Internal MAP Sensor, Boost Hose and Wiring Harness.

The Tru-BoostX boost pressure controller gauge offers all the features you loved from the original model, now with AEMnet for data logging and an oversized internal MAP sensor supporting up to 80 PSI boost pressures.

The Tru-BoostX boost pressure controller gauge delivers digital accuracy with the simplicity of a manual controller. All programming is done via the faceplate buttons and no laptop is required. It includes AEM's specially designed boost control solenoid and all necessary hardware.

Program two boost pressure levels + scramble boost setting: Program two boost pressure modes for different performance levels (up to 80 PSIg with internal MAP sensor) and program a time-based scramble boost setting, controlled via a switched input. You can also turn off the controller and use the gauge as a display.

Change wastegate crack pressure: Ideal for reducing boost spikes and improving turbo response.

View pressure levels in PSIg (PSI), BAR or kPa (PAS): View pressure in your preferred units and adjust the 24 outer LEDs to match max boost levels for perfect sweep movement.

Set alarms and view peak pressure: Set the 24 outer green LEDs to flash based on boost pressure to warn you in case of overpressure. A ground output is included to activate an optional LED warning light. Select the "B" button to view the peak boost pressure level and clear the value via the menu.

Integrated overpressure protection: Protects your engine from an overpressure condition by deactivating the boost control solenoid until you reactivate it via the faceplate buttons. Integrated fault protection: Warns you of a fault if the boost control solenoid is shorted or disconnected, so you never have to guess if the Tru-BoostX is operational. Data logging via AEMnet CAN bus: Outputting channels via AEMnet provides much more than just boost pressure! It sends 13 data channels over a 2-wire connection, including boost pressure, peak boost pressure, target boost pressure, boost duty cycle, overpressure status, wastegate crack pressure, boost control solenoid status, and more. (NOTE: The original Tru Boost 30-4350 Boost Controller Gauge is discontinued and has been replaced by the X-Series Tru-BoostX 30-0352 Controller Gauge, shown below). A boost display gauge and boost controller in one! Easy to program: No laptop required. Includes boost control solenoid and all necessary hardware. Integrated 80 PSIg MAP sensor: No upgrade kit needed for high boost vehicles. Two boost level settings and scramble boost setting. Wastegate crack pressure setting for controlling boost spikes and faster response. Displays boost levels in PSI, BAR, or kPa

Overpressure protection and programmable alarms, ground output for optional LED warning light

Peak overpressure level recall

X-Series design for optimal visibility (87% larger center LED and 33% larger face design)

X-Series dimensions make installation easy (0.825” overall depth, 0.20” cup depth)

AEMnet CAN bus enabled for data logging (13 data channels over 2-wire connection)

Standard 52mm (2-1/16”) housing

24 programmable outer green LEDs

Auto-dimming sensor for ideal brightness day or night

Positive locking connectors

Optional silver bezel with white faceplate accessory kit (30-0352-ACC)

AEM products come with a 12-month warranty
