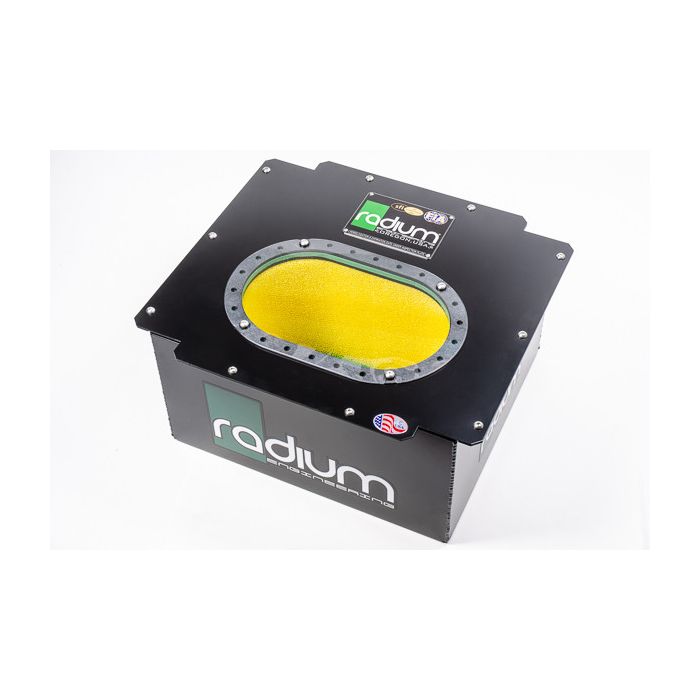

20-0614 R14A Radium Engineering Fuel Cell 14 Gallon / 53 Liter FIA

OVERVIEW

A competition fuel cell provides the ultimate performance and safety for high performance vehicles. RA-series fuel cells are engineered and manufactured by Radium Engineering to meet the highest safety requirements set by international sanctioning organizations FiA and SFI. To learn why a certified fuel cell is superior to a custom fabricated tank, CLICK HERE.

These fuel cells are excellent for all forms of motorsports including: circuit racing, time attack, drifting, rally, off-road racing, and many more.

CONSTRUCTION

The primary component of the fuel cell is the bladder (shown below in green). This component undergoes extensive testing and carries essential certifications. Radium RA-series bladders are constructed using a special polymer that is resistant to ALL fuel types (gasoline, diesel, avgas, E15, E85, ethanol, methanol, etc.).

The bladder is housed in a lightweight powder coated aluminum shell that protects it from damage and debris. Pre-cut anti-slosh explosion suppression foam and an innovative threaded aluminum retaining ring (for easy and quick fuel pump installation) are included.

CERTIFICATIONS

RA-series fuel cells have been tested and approved by the FIA and SFI. All RA-series fuel cells are serialized and include the relevant certifications and documentation.

Certifications are valid for 5 years from the date of manufacture. Radium does NOT market fuel cells without certifications.
INTERNAL DEPTH (TOP OF CAN TO BOTTOM OF BLADDER)

20-0606, 6 gallon: 195mm (7.7in)

20-0610, 10 gallon: 195mm (7.7in)

20-0614, 14 gallon: 289mm (11.4in)

INCLUDES

-Seamless polymer bladder

-Anti-slosh explosion suppression foam

-Powder coated aluminum housing

-Anodized aluminum retaining ring

-Removable inspection plate

-24 bolt Viton 6x10 gaskets, x2

-Stainless steel hardware

-Certificate of conformity

METRIC VOLUME CONVERSION

6 gallon = 23 liter

10 gallon = 37 liter

14 gallon = 53 liter
