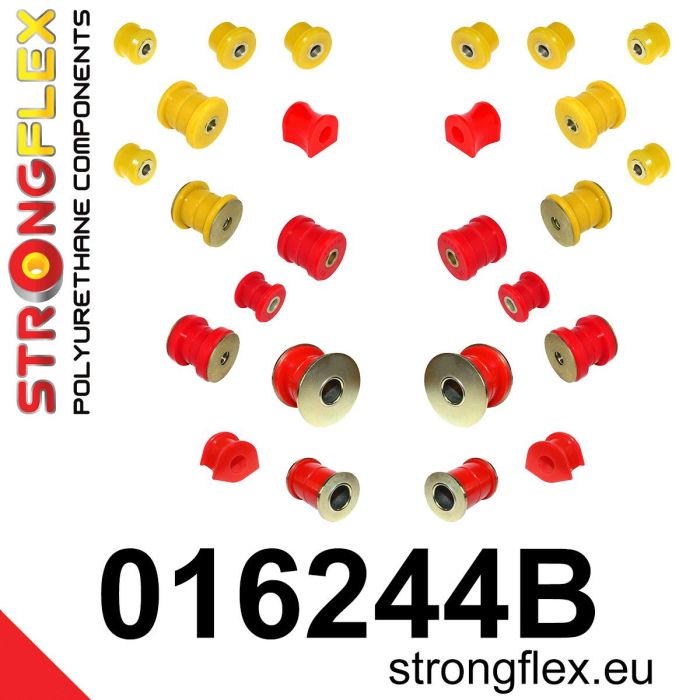

016244B: Complete suspension bushing kit

KIT ID: 016244B

Name: Full suspension bushing kit

Compatible with:

Alfa Romeo GTV 95-05

Alfa Romeo Spider 95-06

Includes:

2x Front anti roll bar bush 011811B

2x Front wishbone front bush 011808B

2x Front wishbone rear bush 011809B (47mm)

or
2x Front wishbone rear bush 011810B (48mm)

4x Rear upper arm bush SPORT 011655A

2x Rear lower spring front bush SPORT 011656A

2x Rear lower spring rear bush SPORT 011657A

2x Rear lower wishbone inner bush 011658B

2x Rear wishbone shock absorber mounting bush 011659B

2x Rear lower wishbone outer bush 011660B

4x Rear toe adjustment bush SPORT 011961A

2x Rear anti roll bar bush 011712B

Notes: The 011808B bush only works with the original suspension arm with 21mm central pins. To install these bushes, you must reuse the old metal parts from your original suspension arms. The diameter of the 011809B bush is 47mm; please check the diameter of the bracket before purchasing. If the inner diameter of the bracket is 48mm, select the 011810B bush. This bush only works with the original suspension arm with 21mm central pins. To install these bushes, you must reuse the old metal parts (steel or aluminum) from your original suspension arms.

Some bushes in the kit are only available with a hardness of 90 ShA (yellow) because the original rubber bush is made of a hard rubber compound. Using the 80 ShA (red) hardness bush will reduce the car's stiffness compared to the original rubber bush.

Units/Kit: 26
Diagrams: D0105, D0107

Hardness: 90 ShA

Material: Polyurethane (PUR/PU)

All our products come with grease!
